Moxa EDS-518E-4GTXSFP-T Layer 2 Gigabit Managed Industrial Ethernet Switch
Introduction

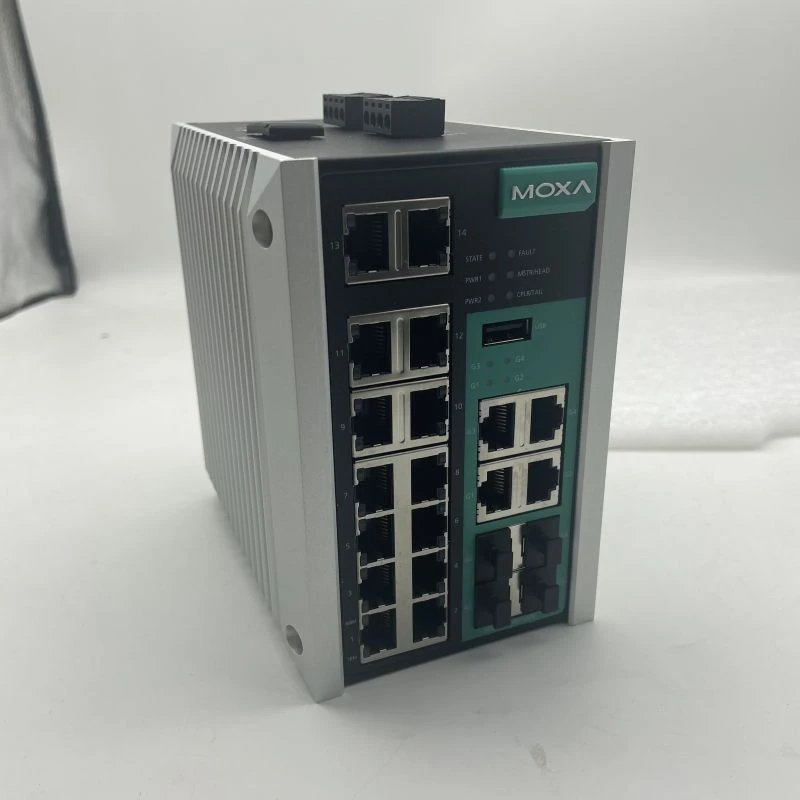

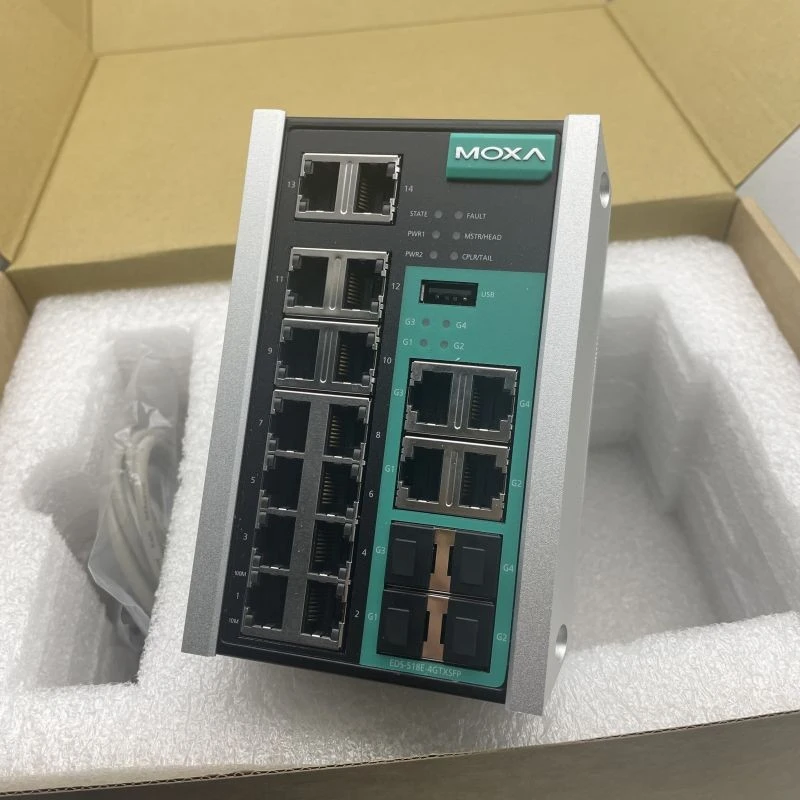

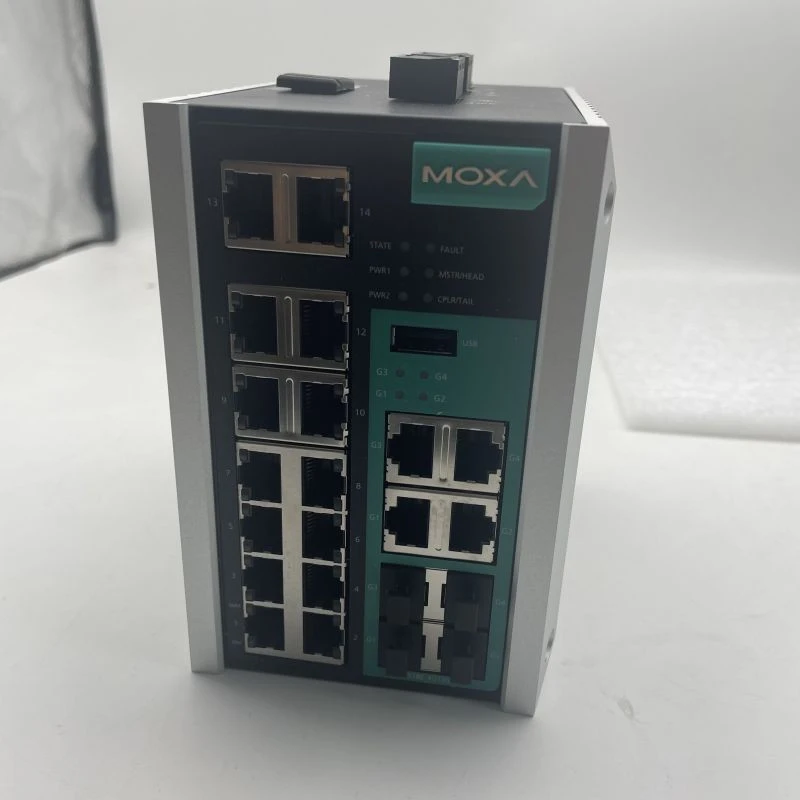

Moxa EDS-518E-4GTXSFP-T is a freestanding, compact 18-port managed Ethernet switch with four combination Gigabit ports and built-in RJ45 or SFP slots for Gigabit fiber-optic communications. The 14 fast Ethernet ports offer a choice of copper and fiber port combinations, giving Moxa EDS-518E-4GTXSFP-T additional freedom when developing your network and application. The Ethernet redundancy technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP improve the system dependability and availability of your network's core. Moxa EDS-518E-4GTXSFP-T additionally includes extensive administration and security capabilities.
Furthermore, Moxa EDS-518E-4GTXSFP-T is especially intended for tough industrial situations with limited installation space and high protection level requirements, including marine, rail wayside, oil and gas, factory automation, and process automation.
Features and Benefits
- Features include 4 Gigabit Ethernet ports, 14 fast Ethernet ports for copper and fiber, Turbo Ring and Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for redundancy.
- RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC addresses are used to improve network security.
- Security features based on IEC 62443, including support for device administration and monitoring via Ethernet/IP, PROFINET, and Modbus TCP protocols.
- Fiber Check™ provides complete fiber status monitoring and warnings for MST/MSC/SSC/SFP fiber ports.
- Supports MXstudio for simple, visible industrial network administration.
- V-ON™ enables millisecond-level multicast data and video network recovery.
Specifications
Input/Output Interface
|
Alarm Contact Channels |
1, Relay output with current carrying capacity of 1 A @ 24 VDC |
|
Buttons |
Reset button |
|
Digital Input Channels |
1 |
|
Digital Inputs |
+13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Ethernet Interface
|
10/100BaseT(X) Ports (RJ45 connector) |
EDS-518E-4GTXSFP:14 EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 12 All models support: Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-Xconnection |
|
Combo Ports (10/100/1000BaseT(X) or100/ 1000BaseSFP+) |
4 |
|
10/100/1000BaseT(X) Ports (RJ45 connector) |
Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
|
100BaseFX Ports (multi-mode SC connector) |
EDS-518E-MM-SC-4GTXSFP Series: 2 |
|
100BaseFX Ports (multi-mode ST connector) |
EDS-518E-MM-ST-4GTXSFP Series: 2 |
|
100BaseFX Ports (single-mode SC connector)
|
EDS-518E-SS-SC-4GTXSFP Series: 2 |
Power Parameters
|
Connection |
2 removable 4-contact terminal block(s) |
|
Input Current |
EDS-518E-4GTXSFP Series: 0.37 A @ 24 VDC EDS-518E-MM-SC-4GTXSFP/MM-ST-4GTXSFP/SS-SC-4GTXSFP: 0.41 A @ 24 VDC |
|
Input Voltage |
12/24/48/-48 VDC, Redundant dual inputs |
|
Operating Voltage |
9.6 to 60 VDC |
|
Overload Current Protection |
Supported |
|
Reverse Polarity Protection |
Supported |
Physical Characteristics
|
Housing |
Metal |
|
IP Rating |
IP30 |
|
Dimensions |
94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in) |
|
Weight |
1518g (3.35 lb) |
|
Installation |
DIN-rail mounting, Wall mounting (with optional kit) |
Environmental Limits
|
Operating Temperature |
Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
|
Storage Temperature (package included) |
-40 to 85°C (-40 to 185°F) |
|
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Moxa EDS-518E-4GTXSFP-T Available Models
|
Model 1 |
Moxa EDS-518E-4GTXSFP |
|
Model 2 |
Moxa EDS-518E-MM-SC-4GTXSFP |
|
Model 3 |
Moxa EDS-518E-MM-ST-4GTXSFP |
|
Model 4 |
Moxa EDS-518E-SS-SC-4GTXSFP |
|
Model 5 |
Moxa EDS-518E-4GTXSFP-T |
|
Model 6 |
Moxa EDS-518E-MM-SC-4GTXSFP-T |
|
Model 7 |
Moxa EDS-518E-MM-ST-4GTXSFP-T |
|
Model 8 |
Moxa EDS-518E-SS-SC-4GTXSFP-T |
