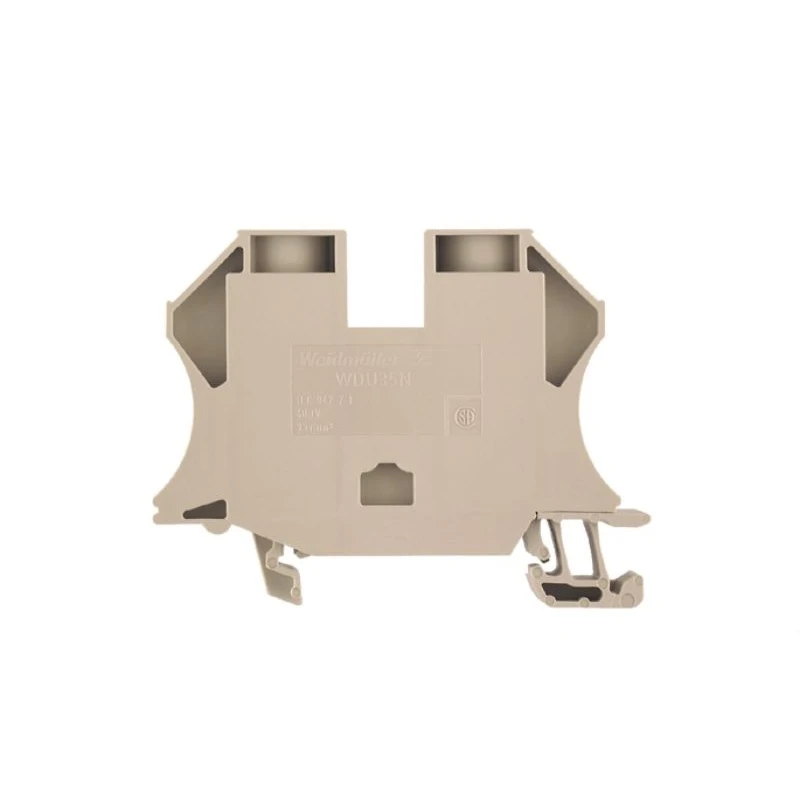

Weidmuller WDU 35N 1040400000

Weidmuller WDU 35N Feed-through terminal block, Screw connection, dark beige, 35 mm², 125 A, 500 V, Number of connections: 2

General ordering data

Version	Feed-through terminal block, Screw connection, dark beige, 35 mm², 125 A, 500 V, Number of connections: 2
Order No.	1040400000
Type	WDU 35N
GTIN (EAN)	4008190351816
Qty.	20 items

Dimensions and weights

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Rating data IECEx/ATEX

System specifications

Version	Screw connection for screwable cross-connection in closed state
End cover plate required	No
Number of potentials	1
Number of levels	1
Number of clamping points per level	2
Number of potentials per tier	1
Levels cross-connected internally	No
PE connection	No
Rail	TS 35
N-function	No
PE function	No
PEN function	Yes

2 clampable conductors (H05V/H07V) with equal cross-section (rated connection)

Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	6 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	2.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	6 mm²

Additional technical data

Conductors for clamping (additional connection)

Connection type, additional connection

Screw connection

Conductors for clamping (rated connection)

Blade size	6.5 x 1.2 mm
Clamping range, max.	50 mm²
Clamping range, min.	2.5 mm²
Clamping screw	M 6
Connection cross-section, stranded, max.	50 mm²
Connection cross-section, stranded, min.	2.5 mm²
Connection direction	on side
Gauge to IEC 60947-1	B8 B9
Number of connections	2
Stripping length	18 mm
Tightening torque, max.	5 Nm
Tightening torque, min.	4 Nm
Type of connection	Screw connection
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 12
Wire connection cross section, finely stranded, max.	35 mm²
Wire connection cross section, finely stranded, min.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	35 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	2.5 mm²
Wire connection cross-section, solid core, max.	16 mm²
Wire connection cross-section, solid core, min.	2.5 mm²

CSA rating data

General

Rail	TS 35
Standards	IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 10
Wire connection cross section AWG, min.	AWG 12

Rating data

Rated cross-section	35 mm²
Rated voltage	500 V
Rated DC voltage	500 V
Rated current	125 A
Current at maximum wires	150 A
Standards	IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Power loss in accordance with IEC 60947-7-x	4 W
Pollution severity	3
Surge voltage category	III

UL rating data

Certificate No. (UR)	E60693
Conductor size Factory wiring max. (UR)	0 AWG
Conductor size Factory wiring min. (UR)	12 AWG
Conductor size Field wiring max. (UR)	0 AWG
Conductor size Field wiring min. (UR)	12 AWG
Current size C (UR)	150 A
Voltage size C (UR)	1000 V

Important note

Product information

1000 V UL and CSA for usage groups B and C: can be used with isolating DIN rails and when using WTW EN partitions
