Moxa EDS-316-MM-SC 16-port unmanaged Ethernet switches

Introduction

Moxa EDS-316-MM-SC Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built- in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class I Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. Moxa EDS-316-MM-SC switches can be installed easily on a DIN rail or in a distribution box.

Features and Benefits

Relay output warning for power failure and port break alarm

Broadcast storm protection

-40 to 75°C wide operating temperature range (-T models)

Specifications

Input/Output Interface

Alarm Contact Channels

1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	EDS-316 models: 16 EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14 EDS-316-SS-SC-80 models: 14 EDS-316-M-SC/M-ST/S-SC models: 15 Auto MDI/MDI-X connection
100BaseFX Ports (multi-mode SC connector)	EDS-316-M-SC models: 1 EDS-316-MM-SC models: 2 EDS-316-MS-SC models: 1
100BaseFX Ports (multi-mode ST connector)	EDS-316-M-ST models: 1 EDS-316-MM-ST models: 2
	EDS-316-MS-SC models: 1 EDS-316-S-SC models: 1 EDS-316-SS-SC models: 2
100BaseFX Ports (single-mode SC connector, 80 km)	EDS-316-SS-SC-80 models: 2
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control

DIP Switch Configuration

Ethernet Interface

Port break alarm

Switch Properties

Packet Buffer Size	1.25 Mbits
MAC Table Size	4 K
Processing Type	Store and Forward

Power Parameters

Input Voltage	12/24/48 VDC Redundant dual inputs
Input Current	0.34 A (EDS-316) @ 24 VDC 0.35 A (EDS-316-S-SC) @ 24 VDC 0.35 A (EDS-316-M-SC, EDS-316-M-ST) @ 24 VDC 0.40 A (EDS-316-SS-SC) @ 24 VDC 0.39 A (EDS-316-MM-SC, EDS-316-MM-ST) @ 24 VDC
Connection	1 removable 6-contact terminal block(s)
Operating Voltage	9.6 to 60 VDC
Reverse Polarity Protection	Supported
Overload Current Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP30
Dimensions	80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight	1140 g (2.52 lb)
Installation	DIN-rail mounting Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety	EN 62368-1 UL 508 UL 60950-1 CSA C22.2 No. 60950-1
EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Hazardous Locations	ATEX Class I Division 2
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Maritime	DNV

MTBF

Time

EDS-316 models: 2,226,219 hrs

EDS-316-MM/MS/SS models: 1,904,659 hrs EDS-316-M/S models: 2,048,802 hrs

Standards

MIL-HDBK-217F

Package Contents

Device

1 x EDS-316 Series switch

Installation Kit

4 x cap, plastic, for RJ45 port

1 x cap, plastic, for SC fiber port (-M-SC/S-SC models)

2 x cap, plastic, for SC fiber port (-MS-SC/MM-SC models)

1 x cap, plastic, for ST fiber port (-M-ST models)

2 x cap, plastic, for ST fiber port (-MM-ST models)

Documentation

1 x quick installation guide 1 x warranty card

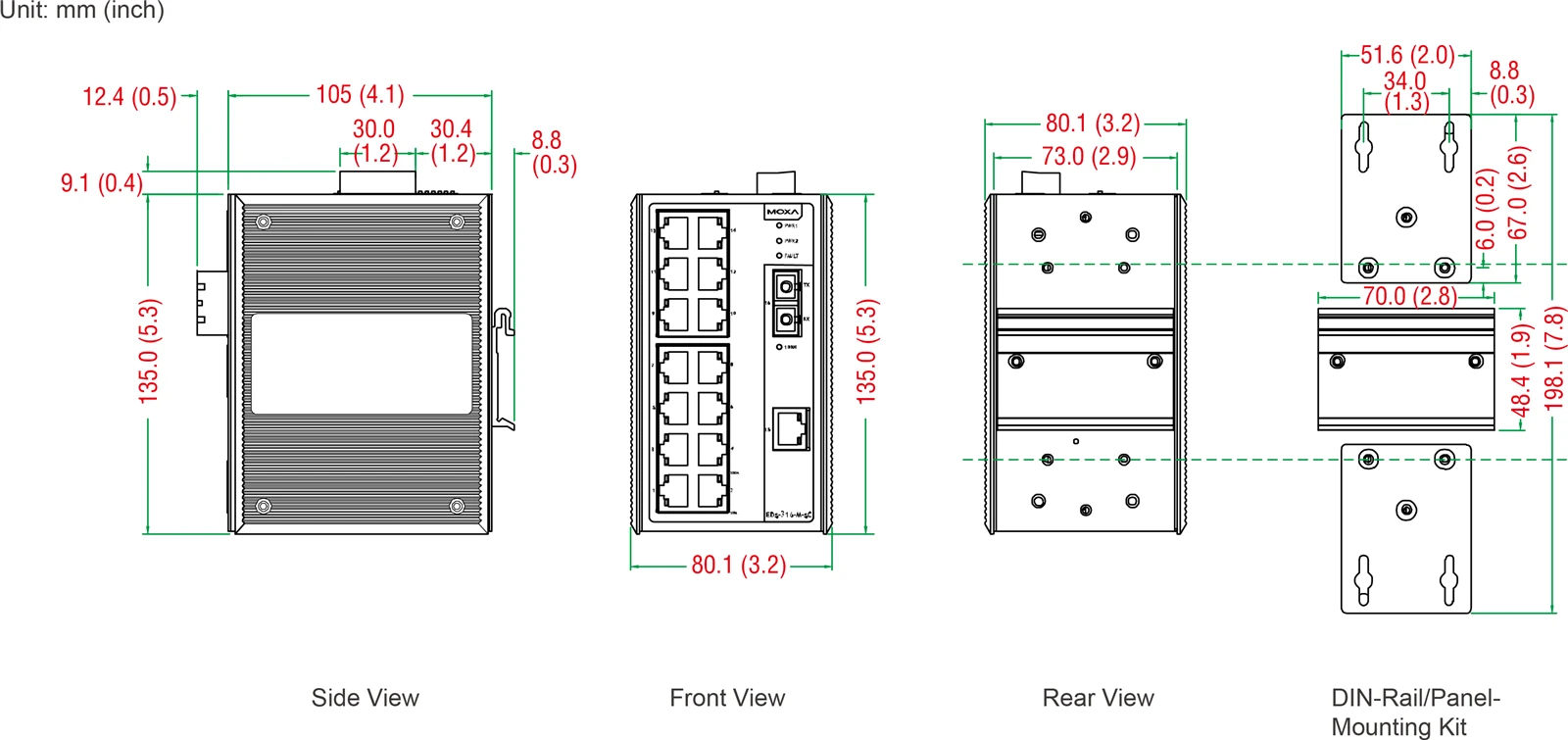

Dimensions

Ordering Information

Model Name	10/100BaseT(X) Ports RJ45 Connector	100BaseFX Ports Multi-Mode, SC Connector	100BaseFX Ports Multi-Mode, ST Connector	100BaseFX Ports Single-Mode, SC Connector	Operating Temp.
EDS-316	16	–	–	–	-10 to 60°C
EDS-316-T	16	–	–	–	-40 to 75°C
EDS-316-M-SC	15	1	–	–	-10 to 60°C
EDS-316-M-SC-T	15	1	–	–	-40 to 75°C
EDS-316-M-ST	15	–	1	–	-10 to 60°C
EDS-316-M-ST-T	15	–	1	–	-40 to 75°C
EDS-316-MM-SC	14	2	–	–	-10 to 60°C
EDS-316-MM-SC-T	14	2	–	–	-40 to 75°C
EDS-316-MM-ST	14	–	2	–	-10 to 60°C
EDS-316-MM-ST-T	14	–	2	–	-40 to 75°C
EDS-316-MS-SC	14	1	–	1	-10 to 60°C
EDS-316-S-SC	15	–	–	1	-10 to 60°C
EDS-316-S-SC-T	15	–	–	1	-40 to 75°C
EDS-316-SS-SC	14	–	–	2	-10 to 60°C
EDS-316-SS-SC-80	14	–	–	2	-10 to 60°C
EDS-316-SS-SC-T	14	–	–	2	-40 to 75°C

Accessories (sold separately)

Power Supplies

DR-120-24	120W/2.5A DIN-rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248 to 370 VDC input, -10 to 60°C operating temperature
DR-4524	45W/2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 50° C operating temperature
DR-75-24	75W/3.2A DIN-rail 24 VDC power supply with universal 85 to 264 VAC or 120 to 370 VDC input, -10 to 60°C operating temperature
MDR-40-24	DIN-rail 24 VDC power supply with 40W/1.7A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
MDR-60-24	DIN-rail 24 VDC power supply with 60W/2.5A, 85 to 264 VAC, or 120 to 370 VDC input, -20 to 70°C operating temperature
